Uncertainty Quantification Overview

This high level overview briefly explains where uncertainty comes from and what uncertainty quantification is.

Definition

Uncertainty Quantification (UQ) is the science of quantifying, characterizing, tracing, and managing uncertainty in computational and real world systems.

UQ seeks to address the problems associated with incorporating real world variability and probabilistic behavior into engineering and systems analysis. Simulations and tests answer the question: What will happen when the system is subjected to a single set of inputs? UQ expands on this question and asks: What is likely to happen when the system is subjected to a range of uncertain and variable inputs?

Background

UQ started at the intersection of mathematics, statistics, and engineering. Drawing from these diverse fields has resulted in a set of system agnostic capabilities which require no knowledge of the inner workings of the system being studied. These powerful UQ methods only require information about the input/output response behavior. Thus, a method that works on an engineering system may be equally applicable to a financial problem that exhibits similar behavior. This allows many industries to benefit from advances in UQ.

Why Uncertainty Quantification?

UQ methods are rapidly being adopted by engineers and modeling professionals across a wide range of industries because they can answer many questions that were previously unanswerable. These methods make it possible to:

  • Understand the uncertainties inherent in almost all systems
  • Predict system responses across uncertain inputs
  • Quantify confidence in predictions
  • Find optimized solutions which are stable across a wide range of inputs
  • Reduce development time, prototyping costs, and unexpected failures
  • Implement probabilistic design processes

Why Now?

As computational power has increased and simulations and testing have become more sophisticated, it has become possible to make accurate predictions for more real world systems. Now the competitive frontier of engineering design has moved on to quickly predicting the behaviors of these systems when subjected to uncertain inputs. Monte Carlo based methods require generating and evaluating large numbers of system variations. These methods become prohibitive to use for large-scale problems. More recent methods, such as those incorporated in SmartUQ, have made UQ easier for small systems and actually feasible for large ones. There's never been a better time to start including uncertainty in your engineering process.

Sources and Types of Uncertainty

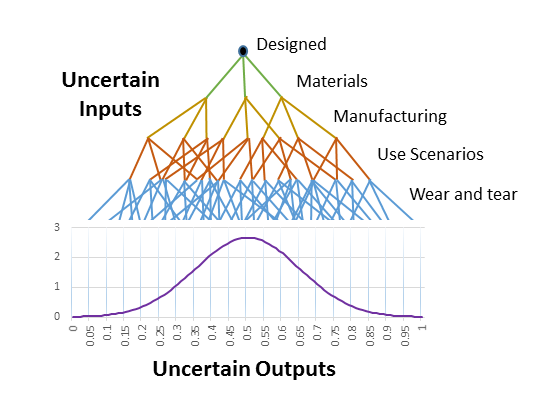

Uncertainty Quantification tracks how uncertain inputs result in distributions of outputs. Figure 1: How Uncertainty Arises
Many sources of uncertainty may effect a single output. In this diagram, the predicted performance of a part falls along a normal distribution around the originally designed value.

What is Uncertainty?

Uncertainty is an inherent part of the real world. No two physical experiments ever produce exactly the same output values and many relevant inputs may be unknown or unmeasurable. Uncertainty effects almost all aspects of engineering modeling and design. Engineers have long dealt with measurement errors, uncertain material properties, and unknown design demand profiles by including factors of safety and extensively testing designs. By more deeply understanding and quantifying the sources of uncertainty, we can make better decisions with known levels of confidence.

Types of Uncertainty

Uncertainties are broadly classified into two categories: aleatoric and epistemic.

Aleatoric

Aleatoric uncertainty is uncertainty that is beyond our current ability to reduce by collecting more information. Thus, it may be considered inherent in a system and parameters with aleatory uncertainty are best represented with probability distributions. Examples of this kind of uncertainty are the results of rolling dice or radioactive decay.

Epistemic

Epistemic uncertainty is uncertainty that results from lack of information that we could theoretically know but don’t currently have access to. Thus, epistemic uncertainty could conceivably be reduced by gathering the right information but often isn’t due to the expense or difficulty of doing so. Examples of this kind of uncertainty include batch material properties, manufactured dimensions, and load profiles.

Common Sources of Uncertainty in Simulation and Testing

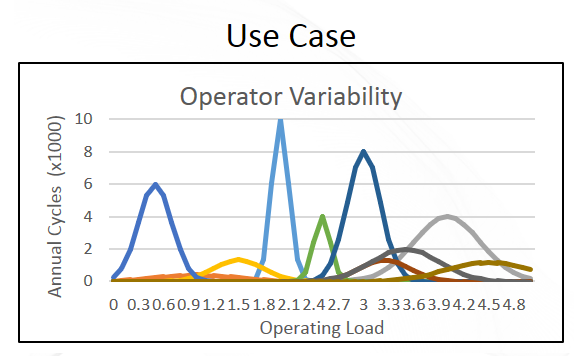

When uncertain use cases result in substantial output variation uncertainty quantification can help. Figure 2: Uncertain Scenarios
This diagram shows the tool usage of different operators. The variation between individual tools in use by a single operator results in a distribution for each operator. There is also substantial variation between operators.

Uncertainties in simulation and testing appear in boundary conditions, initial conditions, system parameters, and in the systems, models, and calculations themselves. These uncertainties may be described in four categories: uncertain inputs, model form and parameter uncertainty, computational and numerical errors, and physical testing uncertainty.

Uncertain Inputs

Any system input including initial conditions, boundary conditions, and transient forcing functions may be subject to uncertainty. These inputs may vary in large, recordable, but unknown ways. This is often the case with operating conditions, design geometries and configurations, loading profiles, weather, and human operator inputs. Uncertain inputs may also be theoretically constant or follow known relationships but have some inherent uncertainty. This is often the case with measured inputs, manufacturing tolerance, and material property variations.

Modeling Form and Parameter Uncertainty

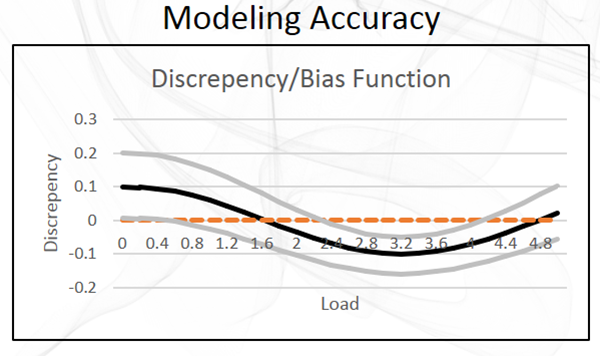

Discrepancy bias functions are useful for verification and validation as well as uncertainty quantification. Figure 3: Discrepancy Function
Model form uncertainty may be represented by discrepancy functions. These functions give the predicted difference between modeled and physical results, including the uncertainty inherent in both.

All models are approximations of reality. Modeling uncertainty is the result of errors, assumptions, and approximations made when choosing the model. This can be further broken down into model form uncertainty, i.e. uncertainty about the models ability to capture the relevant system behaviors, and parameter uncertainty, i.e. uncertainty about parameters within the model.

Using gravity as an example, the Newtonian model of gravity had errors in the model form which were fixed by general relativity. Thus, there is model form uncertainty in the predictions made using the Newtonian model of gravity. The parameters of both of these models, such as gravitational acceleration, are also subject to uncertainty and error. This uncertainty is often the result of errors in measurements or estimations of physical properties and can be reduced by using calibration to adjust the relevant parameters as more information becomes available.

Computational and Numerical Uncertainty

In order to run simulations and solve many mathematical models, it is necessary to simplify or approximate the underlying equations, introducing computational errors such as truncation and convergence error. For the same system and model, these errors vary between different numerical solvers and are dependent on the approximations and settings employed in each solver. Further numerical errors are introduced by the limitations of machine precision and rounding errors inherent in digital systems.

Uncertainty in Physical Testing

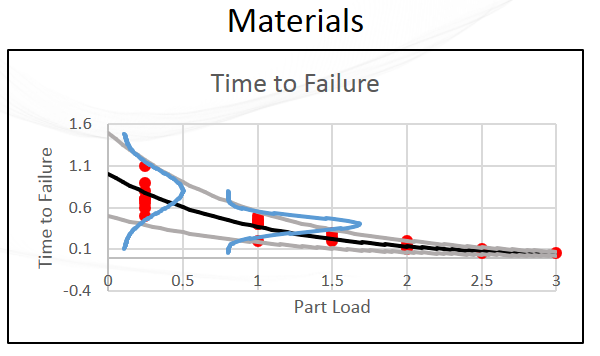

Uncertainty quantification can handle variations in physical tests. Figure 4: Test Variation
Variation between identical failure tests demonstrates the uncertainty inherent in physical systems.

In physical testing, uncertainty arises from uncontrolled or unknown inputs, measurement errors, aleatoric phenomena, and limitations in the design and implementation of tests, such as maximum resolution and special averaging. The presence of these uncertainties results in noisy experimental data and necessitates replication and reproduction in scientific experiments in order to reduce the effects of uncertainty on the desired measurement.
